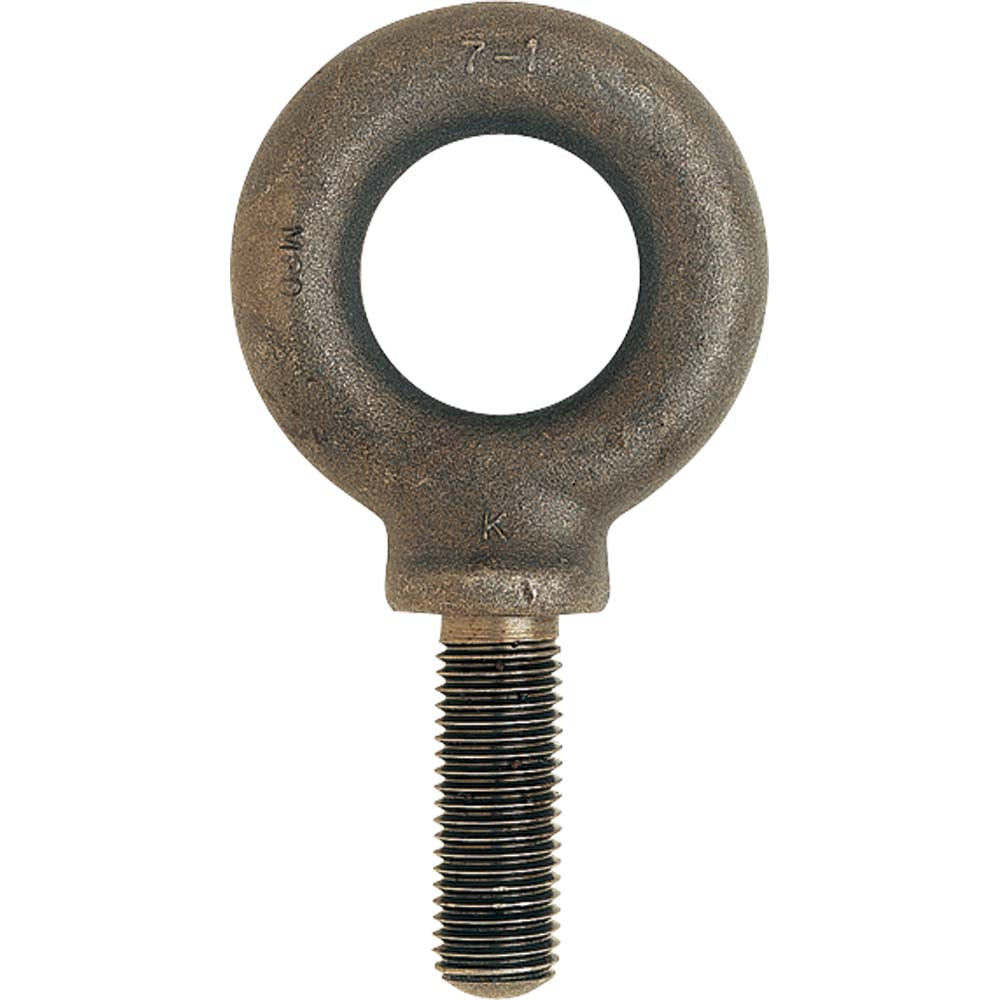

Eye Bolts - Gray Tools Metric Eye Bolts - Shoulder Pattern, Various Sizes

Gray Tools / Eye Bolt

Eye Bolts - Gray Tools Metric Eye Bolts - Shoulder Pattern, Various Sizes

SKU: 14646-BS6M
$18.46 CAD

Eye Bolts - Gray Tools Metric Eye Bolts - Shoulder Pattern, Various Sizes - M6 x 1.0 est en rupture de stock et sera envoyé dès qu'il sera disponible

%3Cp%3EGagnez%20[points_amount]%20lorsque%20vous%20achetez%20cet%20article.%20%3Ca%20href=%22https://www.hansler.com/pages/hs-vip-rewards%22%20target=%22_blank%22%20title=%22Programme%20de%20r%C3%A9compenses%20Hansler%20Smith%22%3EEn%20savoir%20plus%3C/a%3E%3C/p%3E
Notes: Rated capacity is for 0º vertical pulls. Never apply loads greater than Rated Capacity to any eyebolt. Forged from bar quality fine grain C1030 / C1035 steel bar.

Safety Warnings:
  • Rated capacity limit is drastically reduced when loading at any angle.
  • Loading must never be made at an angle greater than 45 degrees from bolt centerline.
  • At an angle up to 45 degrees rated capacity is reduced to of the tabulated value.
  • Direction of Pull Rated Capacity: 0 degrees 100% of rated capacity, 1 - 15 degrees 80% of rated capacity, 16 - 30 degrees 65% of rated capacity, 31 - 45 degrees 30% of rated capacity, 46+ degrees Not recommended.
  • Never apply loads greater than Rated Capacity to any eyebolt.
  • Always use a shoulder eye bolt when performing angular lifts. Angular lifting using plain pattern eye bolts is not recommended.
  • Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.
  • Traceability and Mechanical test values are available with each shipment upon request.
Part No. Thread Size UNC-2A Shank Length (mm) I.D. Eye O.D. Eye Overall Length (mm) Net Weight (lbs) Rated Capacity (kgs/lbs)
BS6M M6 x 1.0 25.40 19.00 30.00 60.30 0.06 210/462
BS7M M7 x 1.0 28.50 22.00 36.50 71.40 0.10 370/814
BS8M M8 x 1.25 31.70 25.00 43.00 82.50 0.17 500/1,110
BS10M M10 x 1.5 35.00 27.00 46.00 90.50 0.24 740/1,628
BS12M M12 x 1.75 38.00 30.00 54.00 100.80 0.36 1,030/2,266
BS14M M14 x 2.0 44.50 35.00 65.00 120.70 0.48 1,600/3,520
BS16M M16 x 2.0 45.50 35.00 65.00 120.70 0.69 1,600/3,520
BS18M M18 x 2.5 51.00 38.00 71.50 133.30 1.10 3,140/4,708
BS20M M20 x 2.5 57.0 41.00 81.00 152.40 1.51 2,860/6,292
BS24M M24 x 3.0 63.50 44.00 90.40 168.30 2.36 3,850/8,470
BS27M M27 x 3.0 70.00 51.00 103.00 191.3 3.41 5,200/11,400
BS30M M30 x 3.5 76.00 55.00 112.70 208.80 4.68 6,400/14,080
BS36M M36 x 4.0 89.00 63.00 131.80 240.50 7.77 8,970/19,734
BS42M M42 x 4.5 95.00 73.00 152.40 274.70 11.10 11,960/26,312
BS45M M45 x 4.5 95.00 73.00 152.40 274.70 11.35 12,720/27,984
BS48M M48 x 5.0 101.60 73.00 174.60 301.60 15.90 16,400/36,080
BS52M M52 x 5.0 101.60 82.00 174.60 301.60 16.70 16,300/38,060
