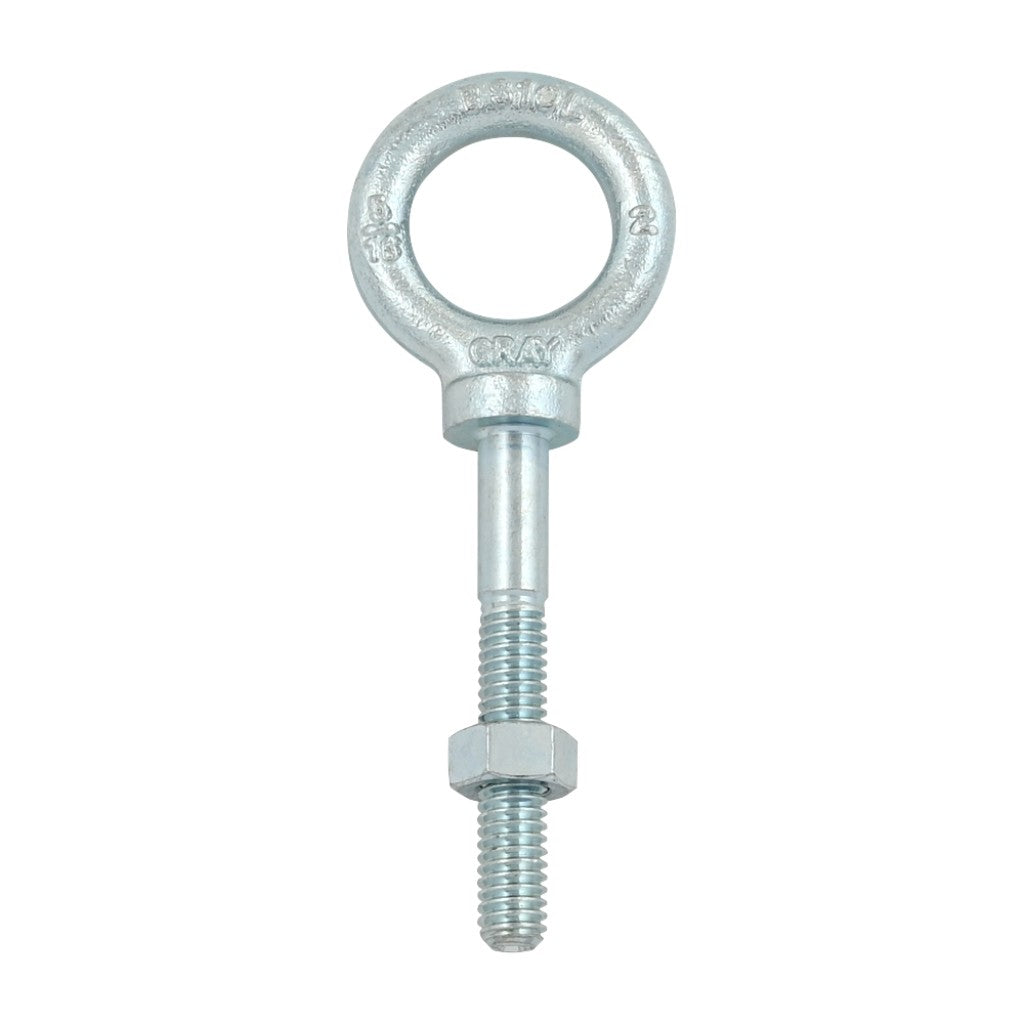

Eye Bolts - Gray Tools Long Shank Shoulder Pattern Eye Bolts, Various Sizes

SKU: 14646-BS08L
$8.70 CAD

Eye Bolts - Gray Tools Long Shank Shoulder Pattern Eye Bolts, Various Sizes - BS08L is currently out of stock.

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%20%3Ca%20href=%22https://www.hansler.com/pages/hs-vip-rewards%22%20target=%22_blank%22%20title=%22Hansler%20Smith%20Rewards%20Program%22%3ELearn%20more%3C/a%3E%3C/p%3E
  • Forged.
  • Carbon Steel.
  • Zinc Plated.
  • Includes assembled galvanized hex nut.

Notes: Rated capacity is for 0º vertical pulls. Never apply loads greater than Rated Capacity to any eyebolt. Forged from bar quality fine grain C1030 / C1035 steel bar.
Safety Warnings:
  • Rated capacity limit is drastically reduced when loading at any angle.
  • Loading must never be made at an angle greater than 45 degrees from bolt centerline.
  • At an angle up to 45 degrees rated capacity is reduced to of the tabulated value.
  • Direction of Pull Rated Capacity: 0 degrees 100% of rated capacity, 1 - 15 degrees 80% of rated capacity, 16 - 30 degrees 65% of rated capacity, 31 - 45 degrees 30% of rated capacity, 46+ degrees is not recommended.
  • Never apply loads greater than Rated Capacity to any eyebolt.
  • Always use a shoulder eye bolt when performing angular lifts. Angular lifting using plain pattern eye bolts is not recommended.
  • Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.
  • Traceability and Mechanical test values are available with each shipment upon request.
Part No. Thread Size UNC-2A Shank Length (inches) Thread Length (inches) I.D. Eye O.D. Eye Overall Length (inches) Center Of Eye To Shoulder Net Weight (lbs) Working Load Limit (lbs)
BS08L 1/4 - 20 2.00 1.50 3/4 1-3/16 3-3/8 3/4 0.07 650.00
BS08XL 1/4 - 20 4.00 2.00 3/4 1-3/16 5-3/8 3/4 0.10 650.00
BS10L 5/16 - 18 2.25 1.50 7/8 1-7/16 3-13/16 15/16 0.13 1200
BS10XL 5/16 - 18 4.25 2.50 7/8 1-7/16 5-13/16 15/16 0.17 1200
BS12L 3/8 - 16 2.50 1.50 1.00 1-11/16 4-21/32 1-1/8 0.22 1550
BS12XL 3/8 - 16 4.50 2.00 1.00 1-11/16 6-1/32 1-1/8 0.28 1550
BS16L 1/2 - 13 3.25 2.00 1-3/16 2-1/8 5-23/32 1-3/8 0.53 2600
BS16XL 1/2 - 13 6.00 3.00 1-3/16 2-1/8 8-15/32 1-3/8 0.67 2600
BS20L 5/8 - 11 4.00 3.00 1-3/8 2-9/16 7.00 1-21/32 0.96 5200
BS20XL 5/8 - 11 6.00 3.00 1-3/8 2-9/16 9.00 1-21/32 1.14 5200
BS24L 3/4 - 10 4.50 3.00 1-1/2 2-13/16 7-3/4 1-13/16 1.45 7200
BS24XL 3/4 - 10 6.00 3.00 1-1/2 2-13/16 9-1/4 1-13/16 1.63 7200
