*Not eligible for free or standard shipping. Custom shipping fees will apply to this item & will be added after your order is placed*

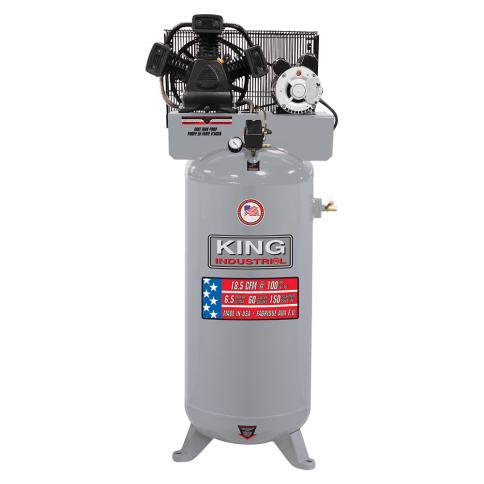

Item #: KC-5160V3

• Thermally protected US Motors® 6.5 peak HP motor with reset
• 3 cylinder cast iron single stage oil lubricated pump
• High output 18.5 CFM @ 100 PSI
• 150 PSI Max pressure for optimum tool performance
• 60 Gallon ASME registered tank provides longer run times
• ASME safety valve
• Belt drive with sturdy enclosed metal belt guard
• Large intake filters
• Heavy-duty 1/2" ball valve and easy to read tank pressure gauge
• Pump with "V" style design minimizes vibrations, improves cooling and extends compressor life
• High efficiency reed valves for maximum performance

Specifications:

• MOTOR (PEAK): 6.5 HP
• FACTORY PRESSURE SETTING (ADJUSTABLE UP TO): 95-125 PSI (Max. 135 PSI)
• MAXIMUM PRESSURE: 150 PSI
• AIR DELIVERY @ 40 PSI: 22.6 CFM
• AIR DELIVERY @ 100 PSI: 18.5 CFM
• TANK SIZE: 60 Gallon
• MOTOR AMPERAGE: 23 Amp.
• RPM: 3,450
• VOLTAGE: 240V, 1 phase, 60 Hz
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 25" x 22" x 68" / 280 lbs
• PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 31" x 24" x 73" / 290 lbs
