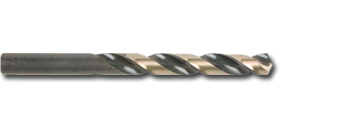

Drill Bits - Clarkson-Osborn HSS Split Point Straight, Two Tone, Various Fractional Sizes, DR02 Series

Drill Bits - Clarkson-Osborn HSS Split Point Straight Various Sizes - Hansler.com
Clarkson-Osborn / Drill Bits

Drill Bits - Clarkson-Osborn HSS Split Point Straight, Two Tone, Various Fractional Sizes, DR02 Series

PU725229 Basket

SKU: 14290-DR02001
$3.89 CAD
50 in stock

Item #: DR02

  • HSS
  • 135 Deg Split Point (self-centering) which eliminates "Walking" and reduces the thrust force needed
  • Black and gold surface treatment for maximum lubricity
  • Ideal for hand drilling and machine applications
  • Excellent choice for steel and stainless steel
  • Click here to see sizes Letter A - Letter Z
  • Click here to see sizes #1 - #40
  • Click here to see sizes #41 - #80
Part # Fractional Decimal
Equivalent 		Flute Length Overall Length Package Quantity
DR02001 1/64 0.0156 3/16  13/16  10
DR02002 1/32 0.0312 13/32  1-3/16  10
DR02003 3/64 0.0469 7/8  1-7/8  10
DR02004 1/16 0.0625 4/8  1-7/8  10
DR02005 5/64 0.0781 1  2  10
DR02006 3/32  0.0938 1-1/4  2-1/4  10
DR02007 7/64 0.1094  1-1/2  2-5/8  10
DR02008 1/8  0.1250  1-5/8  2-3/4  10
DR02009 9/64 0.1406  1-3/4  2-7/8  10
DR02010 5/32  0.1562 2  3-1/8  10
DR02011 11/6 0.1719  2-1/8  3-1/4  10
DR02012 3/16  0.1875 2-5/16  3-1/2  10
DR02013 13/64 0.2031  2-4/16  3-5/8  10
DR02014 7/32 0.2188  2-1/2  3-3/4  10
DR02015 15/64 0.2344  2-5/8  3-7/8  10
DR02016 1/4 0.2500  2-3/4  4  10
DR02017 17/6 0.2656  2-7/8  4-1/8  10
DR02018 9/32 0.2812  2-15/16  4-1/4  10
DR02019 19/64 0.2969  3-1/16  4-3/8  10
DR02020 5/16  0.3125  3-3/16  4-1/2  10
DR02021 21/64 0.3281  3-5/16  4-5/8  10
DR02022 11/32 0.3438  3-7/16  3-3/4  5
DR02023 23/64 0.3594  3-1/2  4-7/8  5
DR02024 3/8   0.3750 3-5/8  5  5
DR02025 25/64 0.3906  3-3/4  5-1/8  5
DR02026 13/32 0.4062 3-7/8 5-1/4 5
DR02027 27/64 0.4219 3-15/16 5-3/8 5
DR02028 7/16 0.4375 4-1/16 5-1/2 5
DR02029 29/64 0.4531 4-3/16 5-5/8 5
DR02030 15/32 0.4688 4-5/16 5-3/4 5
DR02031 31/64 0.4844 4-3/8 5-7/8 5
DR02032 1/2  0.5000 4-1/2 6 5
DR02033 33/64 0.5156 4-13/16 6-5/8 1
DR02034 17/32 0.5312 4-13/16 6-5/8 1
DR02035 35/64 0.5469 4-13/16 6-5/8 1
DR02036 9/16 0.5625 4-13/16 6-5/8 1
DR02037 37/64 0.5781 4-13/16 6-5/8 1
DR02038 19/32 0.5938 5-3/16 7-1/8 1
DR02039 39/64 0.6094 5-3/16 7-1/8 1
DR02040 5/8  0.6250 5-3/16 7-1/8 1
DR02041 41/64 0.6406 5-3/16 7-1/8 1
DR02042 21/32 0.6562 5-3/16 7-1/8 1
DR02043 43/64 0.6719 5-5/8 7-5/8 1
DR02044 11/16 0.6875 5-5/8 7-5/8 1
DR02048 3/4  0.7500 5-1/2 8-1/16 1
