Eye Bolts - Gray Tools Galvanized Eye Bolts - Shoulder Pattern, Various Sizes
SKU:
14646-88708
$6.78 CAD

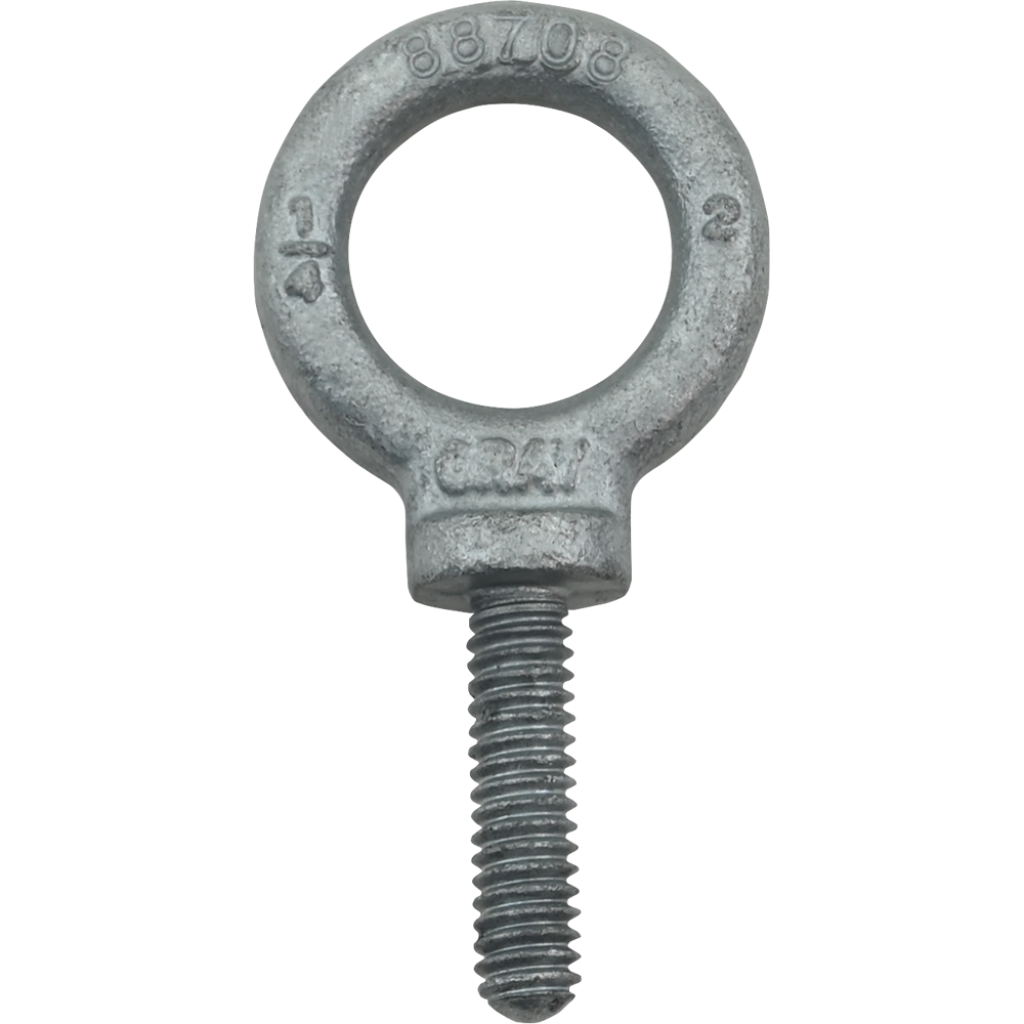

Eye Bolts - Gray Tools Galvanized Eye Bolts - Shoulder Pattern, Various Sizes
- 1/4-20
is currently out of stock.
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%20%3Ca%20href=%22https://www.hansler.com/pages/hs-vip-rewards%22%20target=%22_blank%22%20title=%22Hansler%20Smith%20Rewards%20Program%22%3ELearn%20more%3C/a%3E%3C/p%3E
Notes: Rated capacity is for 0º vertical pulls. Never apply loads greater than Rated Capacity to any eyebolt. Forged from bar quality fine grain C1030 / C1035 steel bar.
Safety Warnings:
- Rated capacity limit is drastically reduced when loading at any angle.
- Loading must never be made at an angle greater than 45 degrees from bolt centerline.
- At an angle up to 45 degrees rated capacity is reduced to of the tabulated value.
- Direction of Pull Rated Capacity: 0 degrees 100% of rated capacity, 1 - 15 degrees 80% of rated capacity, 16 - 30 degrees 65% of rated capacity, 31 - 45 degrees 30% of rated capacity, 46+ degrees is not recommended.
- Never apply loads greater than Rated Capacity to any eyebolt.
- Always use a shoulder eye bolt when performing angular lifts. Angular lifting using plain pattern eye bolts is not recommended.
- Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.
- Traceability and Mechanical test values are available with each shipment upon request.
| Part No. |
Thread Size UNC-2A |
Shank Length (inches) |
I.D. Eye |
O.D. Eye |
Overall Length (inches) |
Center Of Eye To Shoulder |
Net Weight (lbs) |
Rated Capacity (lbs) |
| 88708 |
1/4-20 |
1.00 |
3/4 |
1-3/16 |
2-3/8 |
3/4 |
0.04 |
650.00 |
| 88710 |
5/16-18 |
1 1/8 |
7/8 |
1 7/16 |
2 13/16 |
15/16 |
0.09 |
1,200 |
| 88712 |
3/8-16 |
1 1/4 |
1.00 |
1 11/16 |
3 9/32 |
1 1/18 |
0.17 |
1,550 |
| 88714 |
7/16-14 |
1 3/8 |
1 1/16 |
1 13/16 |
3 9/16 |
1 1/4 |
0.24 |
2,000 |
| 88716 |
1/2-13 |
1 1/2 |
1 3/16 |
2 1/8 |
3 31/32 |
1 3/8 |
0.38 |
2,600 |
| 88718 |
9/16-12 |
1 5/8 |
1 1/4 |
2 5/16 |
4 1/2 |
1 9/16 |
0.51 |
3,200 |
| 88720 |
5/8-11 |
1 3/4 |
1 3/8 |
2 9/16 |
4 3/4 |
1 21/32 |
0.71 |
5,200 |
| 88724 |
3/4-10 |
2.00 |
1 1/2 |
2 13/16 |
5 1/4 |
1 13/16 |
0.99 |
7,200 |
| 88728 |
7/8-9 |
2 1/4 |
1 11/16 |
3 3/16 |
5 31/32 |
2 1/8 |
1.48 |
10,600 |
| 88740 |
1 1/4-7 |
3.00 |
2 3/16 |
4 7/16 |
8 7/32 |
2 15/16 |
4.40 |
21,000 |
