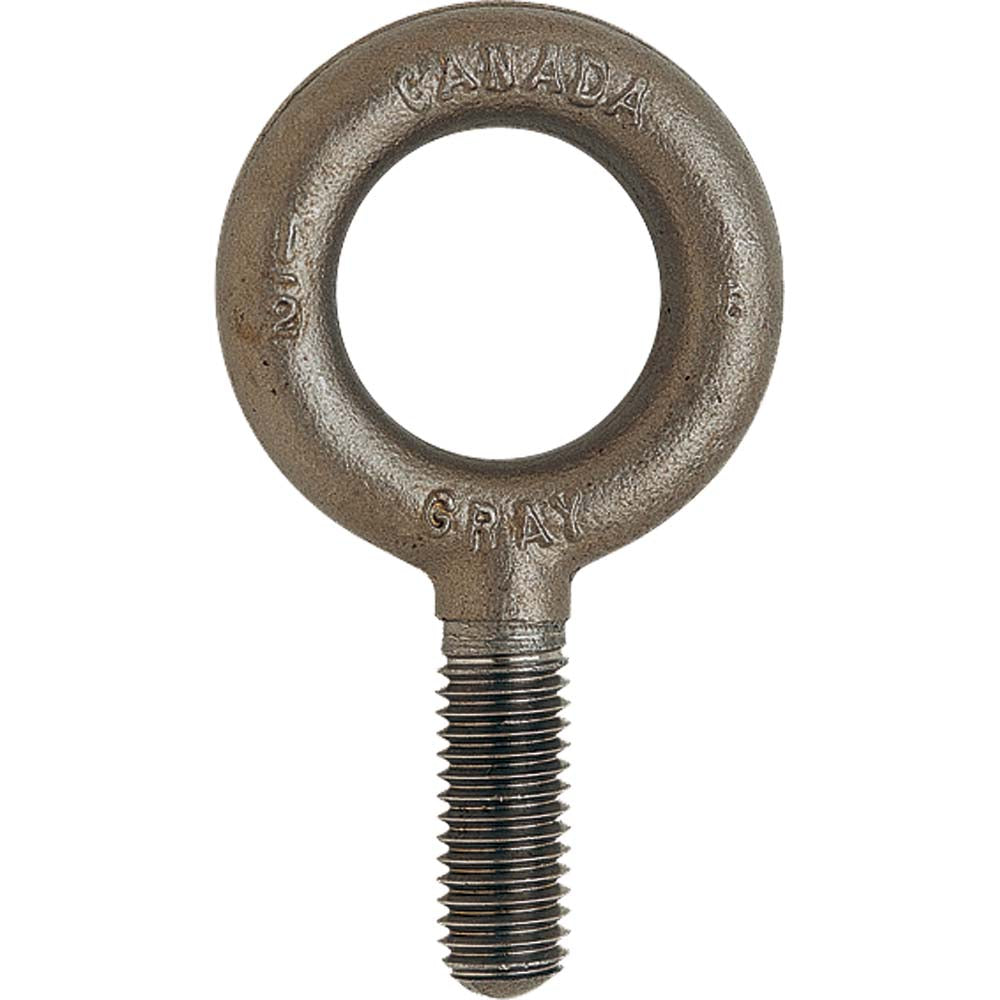

Notes: Rated capacity is for 0º vertical pulls. Never apply loads greater than Rated Capacity to any eyebolt. Forged from bar quality fine grain C1030 / C1035 steel bar. Angular lifts of any type should NEVER be performed using a plain pattern eyebolt.
Safety Warnings:
- Rated capacity limit is drastically reduced when loading at any angle.
- Never apply loads greater than Rated Capacity to any eyebolt.
- Always use a shoulder eye bolt when performing angular lifts. Angular lifting using plain pattern eye bolts is not recommended.
- Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.
- Traceability and Mechanical test values are available with each shipment upon request.
| Part No. |
Thread Size UNC-2A |
Shank Length (inches) |
I.D. Eye |
O.D. Eye |
Overall Length (inches) |
Net Weight (lbs) |
Rated Capacity (lbs) |
| BP08 |
1/4-20 |
1.00 |
3/4 |
1 3/16 |
2 7/32 |
0.04 |
650 |
| BP10 |
5/16-18 |
1 1/8 |
7/8 |
1 7/16 |
2 19/32 |
0.09 |
1,200 |
| BP12 |
3/8-16 |
1 1/4 |
1.00 |
1 11/16 |
3.00 |
0.14 |
1,550 |
| BP14 |
7/16-14 |
1 3/8 |
1 3/32 |
1 13/16 |
3 7/32 |
0.19 |
2,000 |
| BP16 |
1/2-13 |
1 1/2 |
1 3/16 |
2 1/8 |
3 21/32 |
0.31 |
2,600 |
| BP18 |
9/16-12 |
1 5/8 |
1 1/4 |
2 5/16 |
4.00 |
0.41 |
3,200 |
| BP20 |
5/8-11 |
1 3/4 |
1 3/8 |
2 9/16 |
4 1/2 |
0.59 |
5,200 |
| BP24 |
3/4-10 |
2.00 |
1 1/2 |
2 13/16 |
4 7/8 |
0.88 |
7,200 |
| BP28 |
7/8-9 |
2 1/4 |
1 11/16 |
3 3/16 |
5 1/2 |
1.40 |
10,600 |
| BP32 |
1-8 |
2 1/2 |
1 13/16 |
3 9/16 |
6 1/8 |
2.00 |
13,300 |
| BP36 |
1 1/8-7 |
2 3/4 |
2.00 |
4 1/16 |
6 7/8 |
2.80 |
17,000 |
| BP40 |
1 1/4-7 |
3.00 |
2 3/16 |
4 7/16 |
8.00 |
4.00 |
21,000 |
| BP48 |
1 1/2-6 |
3 1/2 |
2 1/2 |
5 3/16 |
8 3/4 |
7.40 |
24,000 |
| BP56 |
1 3/4-5 |
3 3/4 |
2 7/8 |
6.00 |
9 13/16 |
11.80 |
32,000 |
| BP64 |
2-4 1/2 |
4.00 |
3 3/8 |
6 7/8 |
11.00 |
17.40 |
40,000 |
