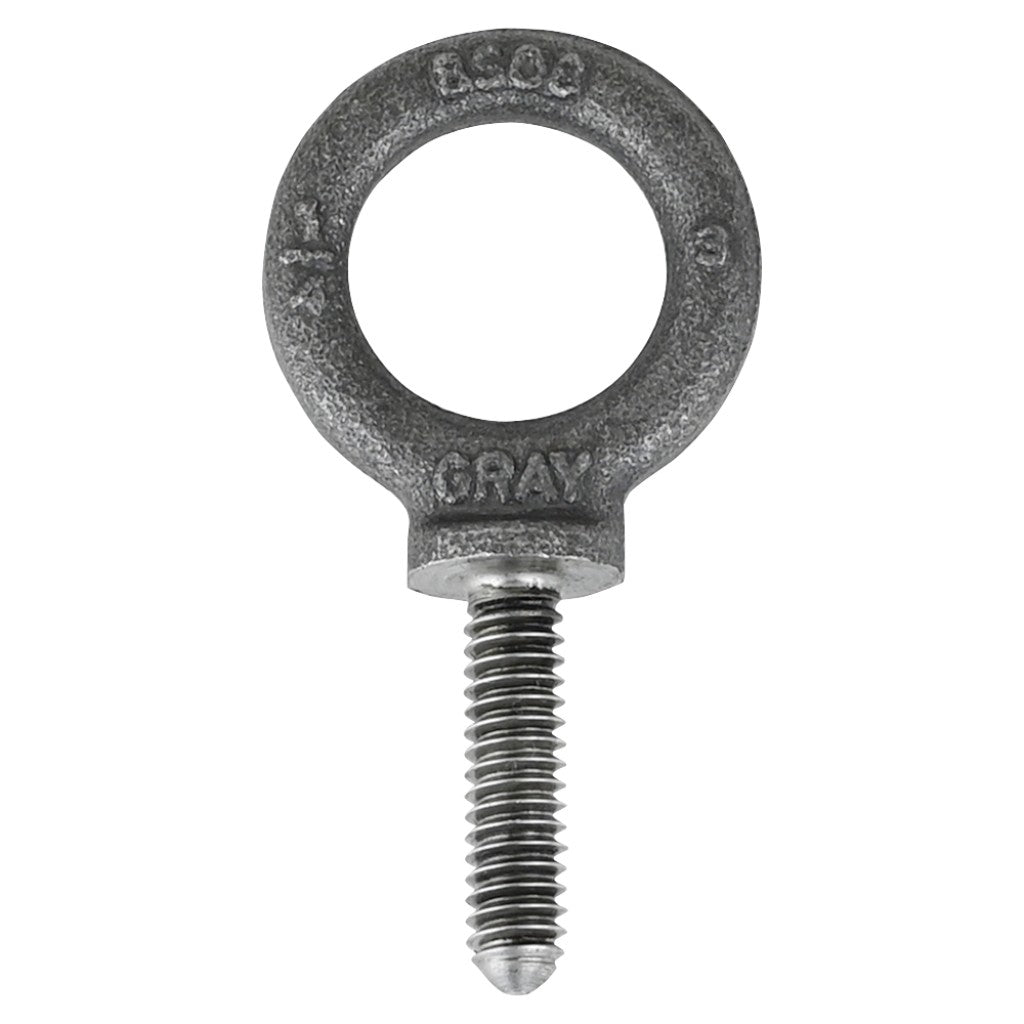

Eye Bolts - Gray Tools Rated Shoulder Pattern Eye Bolts, Various Sizes

Gray Tools / Eye Bolt

Eye Bolts - Gray Tools Rated Shoulder Pattern Eye Bolts, Various Sizes

SKU: 14646-BS08
$6.44 CAD

Eye Bolts - Gray Tools Rated Shoulder Pattern Eye Bolts, Various Sizes - 1/4-20 is currently out of stock.

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%20%3Ca%20href=%22https://www.hansler.com/pages/hs-vip-rewards%22%20target=%22_blank%22%20title=%22Hansler%20Smith%20Rewards%20Program%22%3ELearn%20more%3C/a%3E%3C/p%3E
Notes: Rated capacity is for 0º vertical pulls. Never apply loads greater than Rated Capacity to any eyebolt. Forged from bar quality fine grain C1030 / C1035 steel bar.
Safety Warnings:
  • Rated capacity limit is drastically reduced when loading at any angle.
  • Loading must never be made at an angle greater than 45 degrees from bolt centerline.
  • At an angle up to 45 degrees rated capacity is reduced to of the tabulated value.
  • Direction of Pull Rated Capacity: 0 degrees 100% of rated capacity, 1 - 15 degrees 80% of rated capacity, 16 - 30 degrees 65% of rated capacity, 31 - 45 degrees 30% of rated capacity, 46+ degrees is not recommended.
  • Never apply loads greater than Rated Capacity to any eyebolt.
  • Always use a shoulder eye bolt when performing angular lifts. Angular lifting using plain pattern eye bolts is not recommended.
  • Proof tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.
  • Traceability and Mechanical test values are available with each shipment upon request.
Part No. Thread Size Shank Length (inches) I.D. Eye O.D. Eye Overall Length (inches) Center Of Eye To Shoulder Net Weight (lbs) Rated Capacity (lbs)
BS08 1/4-20 1.00 3/4 1 3/16 2 3/8 3/4 0.04 650.00
BS10 5/16-18 1 1/8 7/8 1 7/16 2 13/16 15/16 0.09 1,200
BS12 3/8-16 1 1/4 1.00 1 11/16 3 9/32 1 1/8 0.17 1,550
BS14 7/16-14 1 3/8 1 1/16 1 13/16 3 9/16 1 1/4 0.24 2,000
BS16 1/2-13 1 1/2 1 3/16 2 1/8 3 31/32 1 3/8 0.38 2,600
BS18 9/16-12 1 5/8 1 1/4 2 5/16 4 1/2 1 9/16 0.51 3,200
BS20 5/8-11 1 3/4 1 3/8 2 9/16 4 3/4 1 21/32 0.71 5,200
BS24 3/4-10 2.00 1 1/2 2 13/16 5 1/4 1 13/16 0.99 7,200
BS28 7/8-9 2 1/4 1 11/16 3 3/16 5 31/32 2 1/8 1.48 10,600
BS32 1-8 2 1/2 1 13/16 3 9/16 6 5/8 2 5/16 2.20 13,300
BS36 1 1/8-7 2 3/4 2.00 4 1/16 7 17/32 2 11/16 3.20 17,000
BS40 1 1/4-7 3.00 2 3/16 4 7/16 8 7/32 2 15/16 4.40 21,000
BS48 1 1/2-6 3 1/2 2 1/2 5 3/16 9 15/32 3 5/16 7.40 24,000
BS56 1 3/4-5 3 3/4 2 7/8 6.00 10 13/16 4.00 11.80 32,000
BS64 2-4 1/2 4.00 3 3/8 6 7/8 11 7/8 4 3/8 17.20 40,000
