Hand Tap Sets - Clarkson-Osborn Warwick - Machine Screw Sizes or Fractional, TA03 Series / TA01 Series

Clarkson-Osborn / Hand Taps

Hand Tap Sets - Clarkson-Osborn Warwick - Machine Screw Sizes or Fractional, TA03 Series / TA01 Series

PU621503 Basket

SKU: 14290-TA01051
$41.64 CAD

Hand Tap Sets - Clarkson-Osborn Warwick - Machine Screw Sizes or Fractional, TA03 Series / TA01 Series - 5/16-18 NC is currently out of stock.

Item #: TA03 (Machine Screw Sizes) / TA01 (Fractional)

Also sold individually. View individual items HERE.

*Not all available types/sizes are listed here - please contact us for additional options.

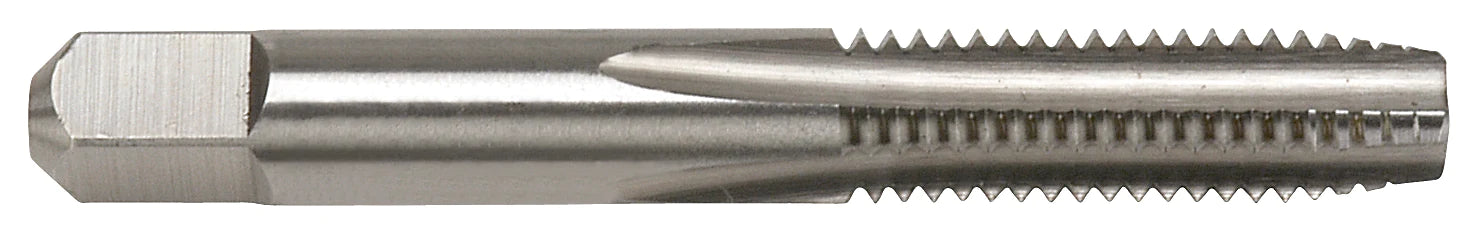

  • Premium High Speed Steel (HSS) Hand Tap
  • Ground Thread
  • Bright Finish
  • All sets include: Taper (7-10 thread chamfer), Plug (3-5 thread chamfer), and Bottoming chamfer (1-2 thread chamfer)
  • Designed for Hand Tapping in wide variety of materials in both through hole and blind hole applications
CODE SIZE TYPE THREAD LENGTH SHK DIA FLTS
TA01051 5/16-18 NC Fractional 1-1/8 2-23/32 0.318 4
TA01061 3/8-16 NC Fractional 1-1/4 2-15/16 0.381 4
TA01071 7/16-14 NC Fractional 1-7/16 3-5/32 0.323 4
TA01081
 1/2-13 NC Fractional 1-21/32 3-3/8 0.367 4
TA01091 9/16-12 NC
 Fractional 1-21/32 3-19/32 0.429 4
TA01101 5/8-11 NC
 Fractional 1-13/16 3-13/16 0.480 4
TA01121 3/4-10 NC
 Fractional 2 4-1/4 0.590 4
TA01441 7/8-14 NF Fractional 2-7/32 4-11/16 0.697 4
TA03401 10-32 NF Machine Screw Sizes 7/8 2-3/8 0.194 4
TA03361 6-40 NF Machine Screw Sizes 11/16 2 0.141 3
